PWM(Pulse Width Modulation) inverters are power electronic devices that convert DC to AC power using pulse width modulation techniques. The technology of PWM plays a pivotal role in enhancing efficiency, minimizing harmonics, and improving voltage regulation in inverters. In this article, we will delve into PWM inverters, which are used in renewable energy systems and smart grid technologies.
What is a PWM Inverter and How PWM Inverters Work?
A PWM(Pulse Width Modulation) Inverter is a device that converts direct current(DC) to alternating current(AC) by modulating the width of the pulses in the output signal. It generates a series of pulses with varying widths to create an AC waveform that closely approximates a sine wave. This technique is used to control the voltage and frequency of the AC output, and work by rapidly switching the DC input on and off using semiconductor switches like IGBTs (Insulated Gate Bipolar Transistors). The switching is controlled by a microprocessor that generates PWM signals. These signals determine how long the switches stay on or off during each cycle, effectively modulating the pulse width. The high switching frequency(typically in the kHz range) helps minimize harmonics and improve efficiency.
The key components of PWM inverter include:
- DC power sources like a battery or solar panels
- IGBTs (Insulated Gate Bipolar Transistors) as switching devices
- Gate drivers control the switching of the IGBTs
- Control unit generates the PWM signals
- An LC filter is used to smooth the output waveform
Types of PWM Inverters
PWM inverters can be broadly categorized into single-phase and three-phase types, each with distinct structures and applications.
Single-phase PWM Inverters:
Single-phase PWM inverters consist of two main parts, the DC power source and the inverter bridge, typically use a full-bridge configuration consisting of four power switches, usually IGBTs and MOSFETs. The switches are controlled in pairs, with diagonal pairs operation together. When one pair is on, it creates a positive voltage across the load, and when the other pair is on, it creates a negative voltage. The control unit adjusts the width of the pulses in real time to maintain the desired output voltage and frequency. A common configuration is the H-bridge inverter, where four IGBTs are arranged in an H-pattern. By controlling the switching sequence of these transistors, the inverter can produce and AC output from the DC input.

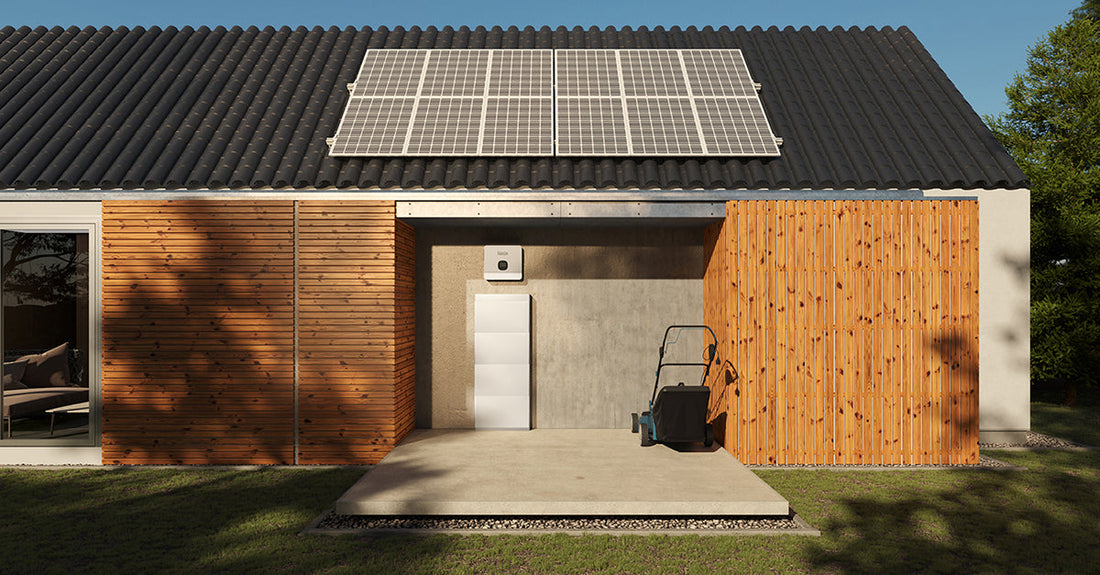

Hinen offers a range of single-phase hybrid inverters that incorporate the PWM technology; the Max 6i model is a 6kW single-phase inverter that is widely used in home appliances, small machinery, and solar power systems for residential use.
Three-phase PWM Inverters:
Three-phase PWM inverters have a similar operating principle to single-phase inverters but use six power switches arranged in three legs. The control unit generates three separate PWM signals, one for each phase. These signals are used to control the switching of the IGBTs to produce three-phase AC power. The PWM inverters for each phase are offset by 120 degrees to create a balanced three-phase output. The switching pattern is more complex than in single-phase inverters, as it needs to maintain the proper phase relationship between the three output voltages. The three-phase output is filtered to smooth waveform and reduce harmonic distortion, ensuring a stable and high-quality power supply. Three-phase PWM inverters have high power and efficiency features, like Hinen Max 12it model is a 12kW three-phase hybrid inverter that is commonly used in industrial and commercial settings and is essential for renewable energy installations like wind and solar farms. The advanced PWM technology in Hinen inverters enables intelligent peak-shaving functionality, which can significantly reduce electricity expenses and adapt to price fluctuations.
Key Applications of PWM Inverters
PWM inverters play a crucial role in various applications, particularly in renewable energy systems. Check out the key applications of PWM inverters:
Renewable Energy Systems:
PWM inverters are essential components in renewable energy systems. In solar and wind energy systems, PWM inverters convert the DC power generated by solar panels or wind turbines into AC power suitable for the grid or local use. The high efficiency and precise control of PWM inverters maximize energy conversion, ensuring that renewable energy systems operate optimally and deliver consistent power output even under varying conditions.
Adjustable Speed AC Drives
PWM inverter are widely used in variable frequency drives(VFDs) for controlling the speed and torque of AC motors. They provide precise control over motor speed by adjusting the frequency and voltage of the AC power supplied to the motor. PWM inverter allow fine-tune motor performance, improves energy efficiency, which reduces wear and tear on mechanical components, and enhances the overall operational flexibility of machinery and equipment.
Induction Heating
In induction heating systems, PWM inverters are used to generate the high-frequency AC required for the heating process. The precise control offered by PWM techniques allows for accurate temperature regulation and efficient energy transfer in industrial heating applications.
Uninterruptible Power Supplies (UPS)
In UPS systems, PWM inverters ensure a seamless supply of power during outages. The high-quality output waveform produced by PWM inverters ensures a reliable power supply for critical equipment and systems. They are ideal for maintaining power quality and preventing disruptions during power failures.
HVDC Transmission Lines
In high-voltage direct current(HVDC) transmission systems, PWM inverters are used at the receiving end to convert DC power back to AC for distribution. The use of PWM techniques helps minimize harmonics and improve power quality in long-distance power transmission, reducing power losses and enhancing the stability and capacity of the transmission system, especially in large-scale renewable energy projects.
Motor Control in Industrial Automation
PWM inverters are extensively used to control the operation of electric motors in industrial automation applications. They enable accurate speed and torque control of AC motors, enhancing the performance and efficiency of automated machinery and robotic systems.
Advantages of PWM Inverters Compared to Traditional Square Wave Inverters
Pulse Width Modulation(PWM) inverters offer several significant benefits over traditional square wave inverters:
Precise Control: They provide exceptional control over output voltage and frequency, which is crucial for sensitive electronic devices and efficient motor control. By adjusting the width of pulses, these inverters can finely tune the output to match specific requirements. The exact voltage and frequency control is crucial in renewable energy systems.
Reduced Harmonic Distortion: Compared to traditional square wave inverters, PWM inverters significantly reduce harmonic distortion in the output waveform. This results in a cleaner, more sinusoidal output that closely mimics the ideal AC waveform. Lower harmonic content means less electromagnetic interference and reduced stress on connected equipment, leading to improved reliability and longevity of the entire system.
Increased Efficiency and Power Factor: PWM inverters are known for their increased efficiency levels than square wave inverters, minimizing power losses during the conversion process, leading to cost savings and better utilization of the power source. Additionally, PWM technology enhances the power factor of the system and reduces reactive power demands on the power grid.
PWM inverters offer superior performance in terms of waveform quality, efficiency, and control compared to traditional square wave inverters. This make them are ideal for most modern applications which need a high-quality AC power output.
Conclusion
PWM inverters stand out as versatile and efficient power conversion solutions, offering precise control, reduced harmonic distortion, and increased efficiency. Their ability and deliver high-quality power makes them suitable for various applications. Consider Hinen PWM inverters to enhance the performance and efficiency of your electrical systems, ensuring smoother and more cost-effective operations.
